Description:

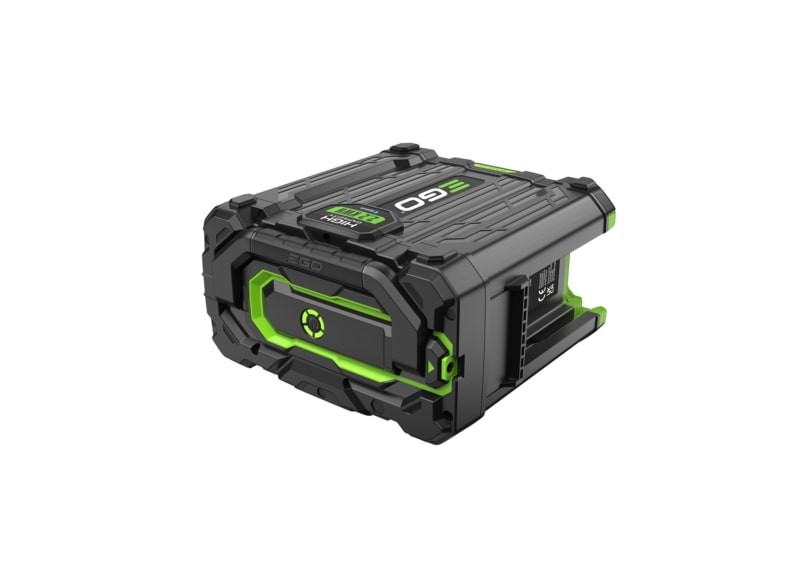

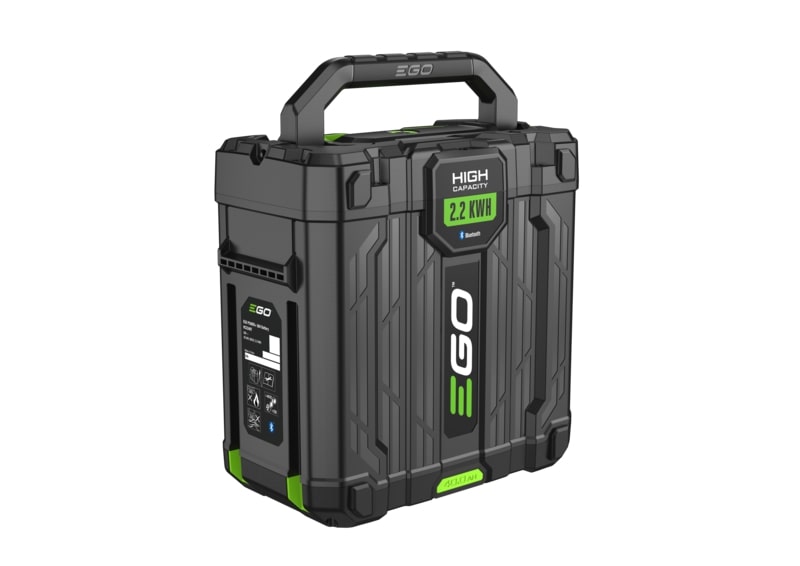

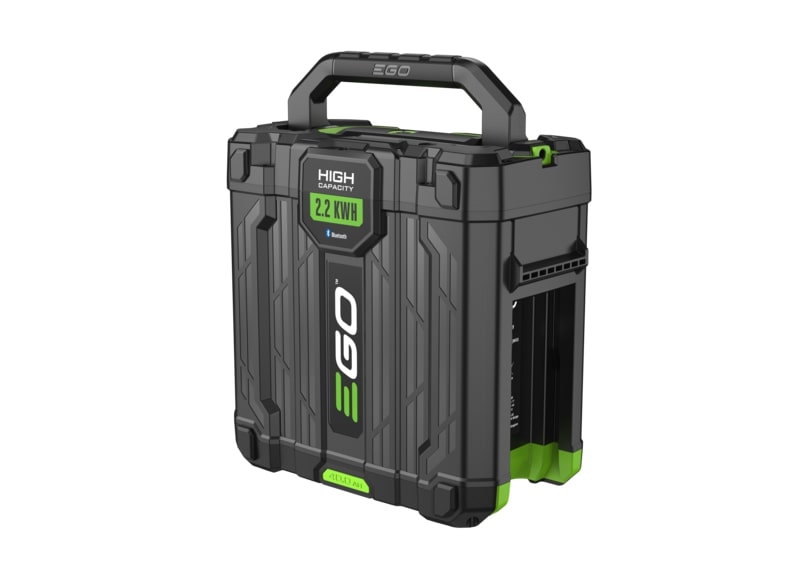

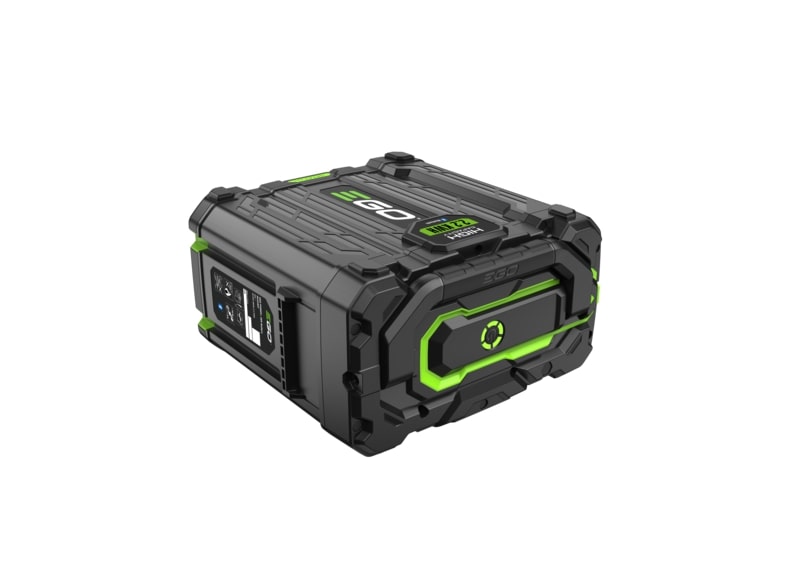

Powers the EGO PGX Power Bank for on-site rapid charging of all EGO ARC Lithium™ portable batteries.

• Fuel Gauge shows remaining battery charge.

• Side interface locking for secure attachment to the charger.

• IoT Bluetooth enabled to relay data, monitor status and control.

• Integrated folding handle.

Specifications:

• Voltage (V): 56 V
• Battery Power Type: Lithium-ion
• Cell Supplier: EVE
• Cell Model Number: EVE-C40
• Max. Continuous Discharge Current: 80 A
• Battery Capacity: 40 Ah
• Battery Energy: 2240 Wh
• Battery Configuration: 16S2P (16 Series, 2 Parallel)
• Number of Battery Cells: 32
• BLE (Bluetooth Low Energy) Connection: Yes
• WIFI Connection: No
• Incompatible Charger: Commercial charging system
• Battery Level Indicator: Yes
• Cooling Technology: No
• IOT Function: Yes
• Self-Diagnosis: Yes
• Max. Battery Length: 335 mm
• Max. Battery Width: 331 mm
• Max. Battery Height: 184 mm
• Battery Weight: 17,700 g (17.7 kg)
• Cell Capacity: 20 Ah
• Cell Size/Shape: 40135 (probably referring to the cell's dimensions in millimeters)
